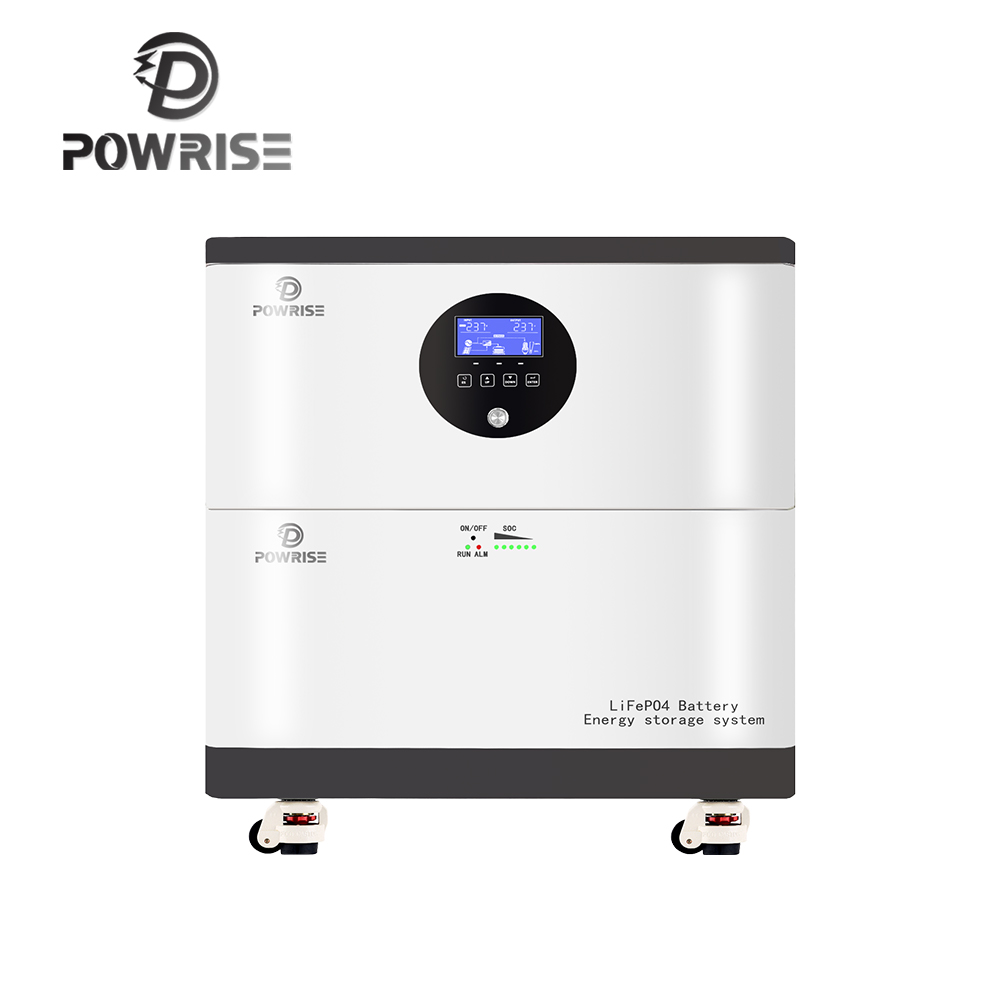

20kwh Lithium Ion Battery Off grid Inverter Solar Battery Energy Storage System
20kwh Lithium Ion Battery Off grid Inverter Solar Battery Energy Storage System
Home backup energy storage system
5.5kva inverter* 1
5.12kwh battery * 4
AC charging
PV charging
MOQ: 10 UNITS
- Adopted enables variable capacity range
- Switching time betweenon-off grid less than 10 ms
- Lithium Iron Phosphate(LFP) cell secures safe and reliable operation
- automatic isolation ofthe faulty battery module secures smooth system operation
- The APP-based remote monitoring offerseasy maintenance and unlimited function expansion

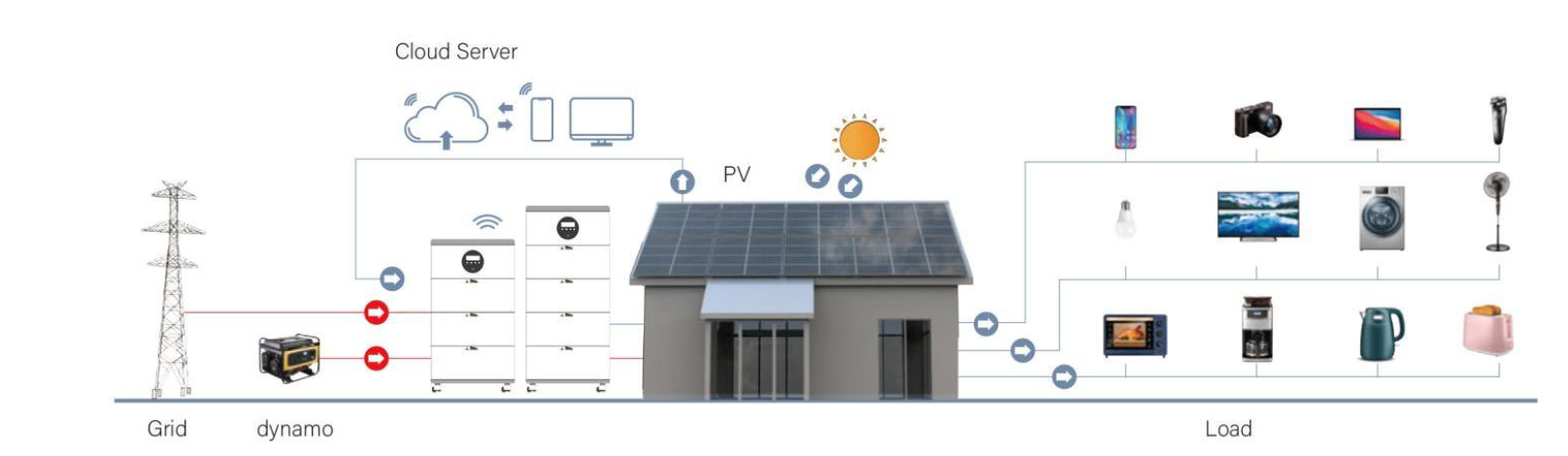

- A PV rooftop system combined with ourenergy system allows you to generate and use electricity for your home
- No matching and commissioningrequired, ready to install
- Can expand storage capacity easily based on demand
Inverter Module |
|
Inverter Input and Output |
|
Input Voltage |
220VAC 50HZ & 110VAC 60HZ |
Output Power |
5500W |
Peak Power |
11000W |
Charging current |
Max.100A(Solar+AC) |
Solar panel power |
5500W |
Solar charging current |
Max.18A |
Open circuit voltage |
Max.500V DC(Solar) |
Dimension |
708*800*223 mm |
Weight |
30kg |
Battery Module |
|
Energy power |
5120Wh*4 |
Charge voltage |
58.4V |
Discharge cut-off voltage |
40V |
Charge mode |
CC/CA |
Max Charge curren |
100A |
Max Discharge current |
100A |
Cycle life |
>2000Cycle/0.5C |
Dimension |
708*800*223 mm |
Weight |
52kg |
Shell material |
SPCC |
Working temperature |
Storage: 0~45℃Charge:0~55℃Discharge: -20~60℃ |
Communication |
RS485/CAN/RS232 |
