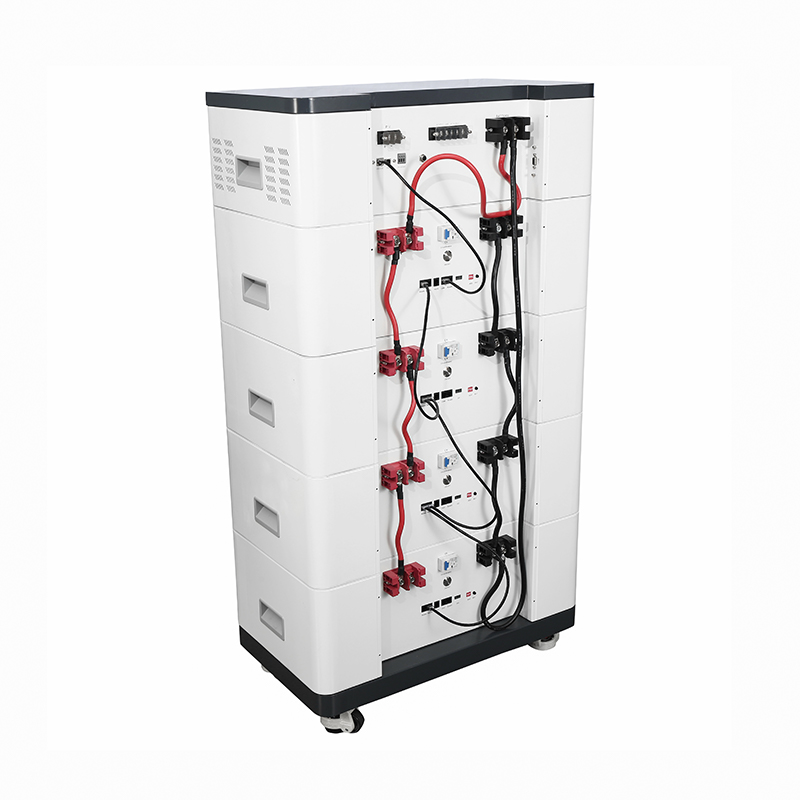

3.5kva lithium iron home energy storage system
3.5kva lithium iron home energy storage system
Home backup energy storage system
3.5kva inverter* 1
3.84kwh battery * 1/2/3/4 for option
AC charging
PV charging
- Adopted enables variable capacity range
- Switching time betweenon-off grid less than 10 ms
- Lithium Iron Phosphate(LFP) cell secures safe and reliable operation
- automatic isolation ofthe faulty battery module secures smooth system operation
- The APP-based remote monitoring offerseasy maintenance and unlimited function expansion
- A PV rooftop system combined with ourenergy system allows you to generate and use electricity for your home
- No matching and commissioningrequired, ready to install
- Can expand storage capacity easily based on demand
Inverter Module |
|
Inverter Input and Output |
|
Input Voltage |
220VAC 50HZ & 110VAC 60HZ |
Output Power |
3500W |
Peak Power |
7000W |
Charging current |
Max.100A(Solar+AC) |
Solar panel power |
4500W |
Solar charging current |
Max.18A |
Open circuit voltage |
Max.500V DC(Solar) |
Dimension |
545*415*275 mm |
Weight |
27kg |
Battery Module |
|
Energy power |
3840Wh |
Charge voltage |
29.2V |
Discharge cut-off voltage |
20V |
Charge mode |
CC/CA |
Max Charge curren |
150A |
Max Discharge current |
150A |
Cycle life |
>2000Cycle/0.5C |
Dimension |
545*415*275 mm |
Weight |
40kg |
Shell material |
SPCC |
Working temperature |
Storage: 0~45℃Charge:0~55℃Discharge: -20~60℃ |
Communication |
RS485/CAN/RS232 |
