48V 51.2V 100Ah LiFePO4 solar energy storage battery pack
48V 51.2V 100Ah LiFePO4 solar energy storage battery pack
- Battery type: LiFePO4
- 12s1p lithium Iron Phosphate rechargeable battery pack
- Use for home energy storage system
- Capacity: 5120wh

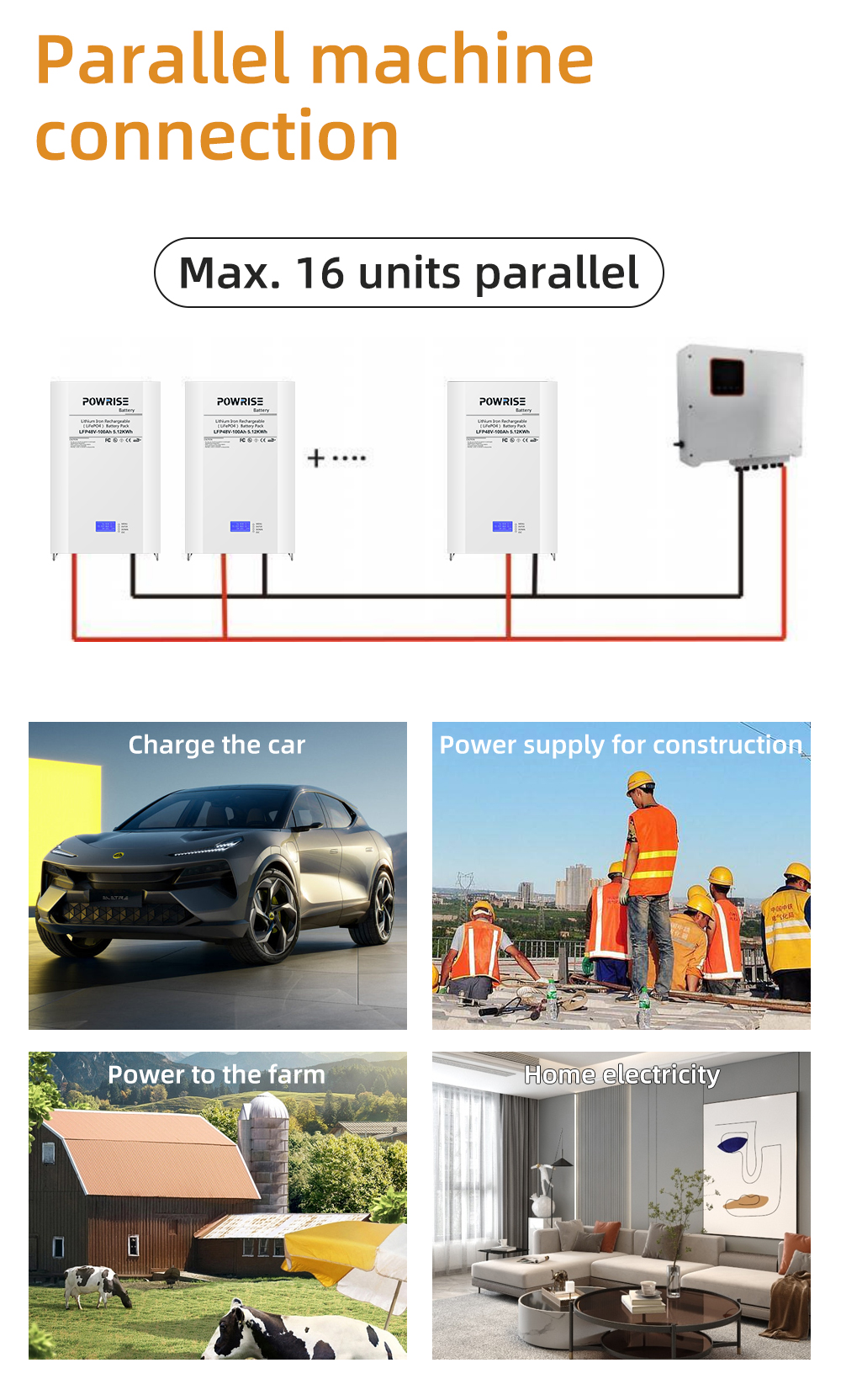

- Max parrelle 16 units
- Battery type: LiFePO4
- 12s1p lithium Iron Phosphate rechargeable battery pack
- Use for home energy storage system
- Capacity: 5120wh
- Max parrelle 16 units
| Seri no. | Item | General Parameter | Remark | |
|
1 |
Combination method | 16S1P | ||
|
2 |
Rated capacity | Typical | 100Ah | Standard discharge after standard charge (package) |
| Minimum | 100Ah | |||
|
3 |
Factory voltage | 51V-53V (40-60%) | Operation voltage | |
|
4 |
End of discharge voltage | 40-44V | Discharge cut-off voltage | |
|
5 |
Charging voltage | 56-58V | ||
|
6 |
Internal impedance | ≤40mΩ | Internal resistance measured at AC 1KHz after 50% charge. (Must use the new batteries within one week after shipment and cycles less than 5 times) | |
|
7 |
Standard charge | Constant current: 20A Constant voltage: 56-58V Cut-off current: 0.02CA | Charging time: Approx. 5.0h | |
| Limited current | 80A | |||
|
8 |
Standard discharge | Constant current: 20A Cut-off voltage: 40-44V | ||
|
9 |
Maximum continuous charge current | 100A | ≥10℃ | |
|
10 |
Maximum continuous discharge current | 100A | ≥10℃ | |
|
11 |
Operation temperature range | Charge: 0-55℃ Discharge: -20-60℃ | 60±25%RH battery cell | |
|
12 |
Storage temperature range | Less than 12months: -10-35℃ Less than 3months: -10-45℃ Less than 7days: -20-65℃ | 60±25%RH battery cell | |
|
13 |
Dimension | 600*400*175 mm | ||
|
14 |
Weight | Approx.: 47kgs | ||
